Water drains

This component is part of Chassis and Body.

Definition

Define the component. Include, if known, the german language word for the component, as well as the English or American equivalent. Show a picture, a diagram.

• Its technical name & common name(s)
• part # - start year & end year
• which area it belongs to - engine, transmission, body, injection etc, link back to the relevant section

Function

Describe, in general terms the function of this component. Meaning what is it there for and what role it plays. Describe how it works, the inside mechanism. Use diagrams to explain.

Maintenance

Describe common maintenance procedures, and common faults that may occur. Describe how these may be diagnosed and resolved. Again, include diagrams, photographs and explanations. Where possible, include measures, tolerances, weights etc.

• Symptoms when it faults
• How to test if it is faulty - what tools to use
• How to fix / change

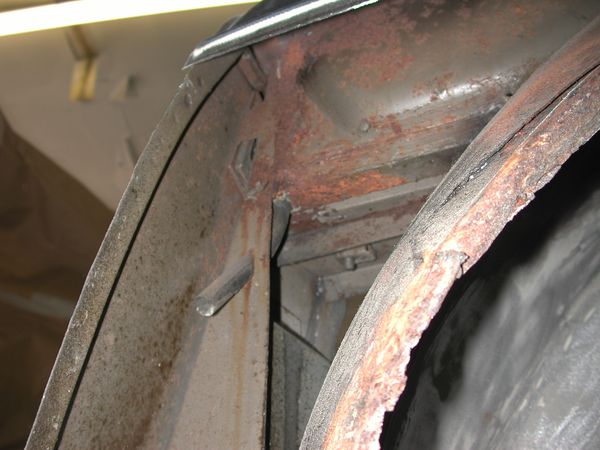

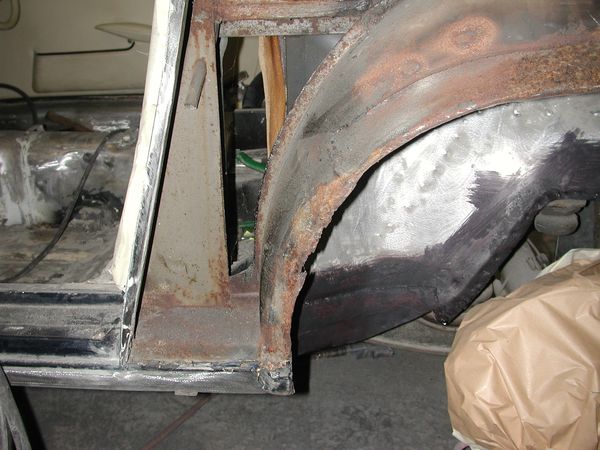

Soft-top Compartment Drain

Link to related components where appropriate.

Old Yahoo content

The following is the content from the old Yahoo documents on the site. It needs to be structured and edited in the correct sections of the entire document. After moving particular content to its correct place in the manual, please delete it here.

---

I would stress making sure that you clean everything out. If the drains clog, water will build up in the vent areas and cause rust. It will also splash into the foot areas. When I cleaned mine I used a coat hanger to clean the drain tubes and blew them out with compressed air. Then wash them down by pouring water in. The water should drain down w/o any restrictions. It's not hard and only takes about an hour to complete.

No, don't use a coat hanger... the drain tubes are rubber when they cross the foot area. If they have never been replaced the wire will tear them. If the rubber is in that bad a condition it definitely needs to be replaced. It is just rubber hose with a couple of hose clamps. Not very hard to do.

OK, I'm looking at my parts book and I don't see drain hoses. This particular page includes cowl, vent, filter, heater flaps, heater core, blower, in-dash ducting to side vents, duct seals, in-dash heater controls, heater control cables, and more. I also looked at the windshield washer section, the windshield section, and the front body panels section. Where are these rubber hoses? How do you access them? If they break, where does the water go?

I certainly wouldn't waste any money on buying MB parts. It is just a rubber hose that you buy at an auto store. I'll bet MB justs cuts a hose from a roll and sells it to you at a premium.

The cowl vent drain hoses are short 5" long rubber hoses that are visible underneath the dashboard on the sides of the heater matrix box which is fastened to the firewall. If you look very deep underneath you will see the metal painted (body color) elbows for the drain pipes coming from the top and facing the front of the car. There is the rubber hose and then it connects to another metal body colored pipe which goes straight through the firewall into the engine compartment. If you look under the hood in the engine compartment area near the gas pedal linkage running along the firewall you will see two pipes sticking out. The ends of these pipes should have a funny black rubber boot at the ends that look like crab claws, these are the outlets of the drains.

Since everyone is busy doing spring maintenance, I thought this might be an appropriate time to remind everyone to clear the drain tubes for the ventilation air intake box (scuttlebox). Just to make sure we are clear on this, I'm referring to the air scoop under the windshield. Water and dirt get in through the opening and drain out through two rubber ball like fittings on the engine side of the firewall. One is located near the exhaust headpipe, the other is below the brake booster/master cylinder.

These will allow the free flow of water but can become plugged with tree needles, leaves, etc. When this occurs water can become trapped in the tubes, backing up and into the interior of the car. If the connecting rubber hoses are in good shape (found under the dash above the footwells) leaks may not show up. Water will be accumulating where it should not be. After a time the metal tubes may rust through and then the water can build up in the firewall crossmember channels.

These channels can hold considerable amounts of water (several litres) as they are continuous from side to side. You don't want this to happen. Your car is now rusting from the inside out and you won't know for some time. This is the voice of experience, as I presently have most of my firewall crossmember cut out, only posibble because the engine is out of the car.

A formidable task, as the crossmember passes through the inner fenders to the outer corners of the cockpit, and is welded to the firewall. This rust damage could have been prevented by an annual cleaning and inspection of these drain tubes. The damage seemed minor from the outside, with a small rust hole around the passenger-side drain tube. The extensive corrosion was all on the inside, eventually eating through to the passenger footwell. Squeeze the rubber ball and make sure these tubes aren't blocked. Run a small wire up the tube to make sure.

I read this advice the other day with interest and decided to do it this weekend. Unfortunately it rained very heavily last night, after a nice 2 week dry spell, and this morning the front carpets are soaked. I haven’t had time to figure it out yet but just drying out the floor is enough work let alone finding the cause and cleaning out the gunk! I've seen the tubes on the engine side and cleaned one out, it was semi-choked. The other side is more difficult as mine is right hand drive, and consequently the brake booster, steering box and exhaust make access difficult.

The vent intake has to be drained as water will enter when driving in the rain. The air has to travel through the heater core/vent chambers but you don't want water here. Since the air chamber is in front of the heater core and inside the car, the water has to be drained back through the firewall.

There are two rubber hoses connecting from the bottom of this chamber to the metal tubes which actually exit through the firewall. These rubber tubes (one each side) can be seen by removing the underdash kick panels and laying upside down on the floor. Most vehicles have to drain away water which enters the grills below the windshield, the arrangement is a little different in our cars, due to the scoop, but not much.

There are other sources for wet floors: windshield wiper arm gaskets, soft/hard top and side glass gaskets, wiper motor chamber drain holes, and not to be forgotten is dried out windshield rubber gaskets, leaking around the glass, a common occurence in older benzes which can lead to rotted floors, as the water sits undetected under the mats. These windshield rubber/gaskets should be renewed probably every 10 years. If you are not sure, check them next time it rains.

Look for a little trickle in the lower inside corners of the rubbers, next to the glass, front and rear on the hard top or sedans. This can soak your backing mats and not get the actual carpet wet enough to show it.

Well I tackled the job and discovered one side of the drain tube was blocked and all the water had run through the opposite side which was burst, letting water into the car. Luckily I had already stripped out the carpet and underlay as I wanted to inspect the floor and I was about to replace the carpets, so I spotted the leak as it happened. Anyway some new tubing on both side and a general cleaning and all is well.

Dan Caron: I've done a lot of these repairs over the years. It surprises many just how much time you can spend trying to make everything work. On the subject of water getting into the car, here's one that not everyone knows about. In the soft top well are two drains at the front where the top bolts down. These are actually rubber tubes and they can easily become plugged.

If your top rubs against the seal it will slowly wear it away leaving a spot for water to enter. The channel that holds this seal often rusts away and this also allows water to get in. The seal itself has a drain where the channel in the rubber starts. There's a small hole and the water drains through it and hits a baffle on top of the wheel house and then exits just above the rocker cover between the door and wheel opening.

There are two drain holes at that area and they too can get plugged. A good shot of air will usually open it back up. Water in and of itself is no so bad. It's when it lays in one place for a long time on a continuous basis that you will have problems.

Got caught in my first rainstorm since owning the car. I experienced significant water penetration at my feet while driving. All of my grommets seem to be in place and tight. I wonder if I could be missing the rubber hoses that connect to the cowl drains. Are these hoses visible with the AC installed in the car? Does anyone have experience with missing cowl drain lines?

I don't have A/C in my car, so I can't comment if that blocks your view of the hoses. Now knowing where my hoses are, the water would run about where the driver's right foot would be, and in a corresponding location on the passenger side. Also, make sure that the cowl vent closes tight and does not let water into the air box. I'm assuming that if water does get in there, then it would drain out somewhere.

I have had the same experience. The easiest way to locate the drain hoses is to start at the point that the metal tubes protrude through the front of the firewall. Once you get yourself oriented, then look up and under the dash at the point you saw the tubes on the other side. They are clearly visible and replaceable without needing to take anything else apart. We're here to help, so just take it in stride. Just think, you'll be learning more about your car.

If the hoses are clogged the water builds up in the vent area and will spill into the side vents (by the doors). From there it will leak on to your foot also from underneath the dash. That is probably what is happening in your case. It is especially noticable when you go up or down a hill or taking a sharp turn causing the water to slosh around.

One stupid thing to check/change is the gasket around the radio antenna. Spent about a month looking for a leak everywhere but there.

Recent heavy rains in South Texas have uncovered a leak in my 1969 280SL. It appears to be coming from the air scoop; water drips on my feet whilst I'm driving. Any ideas on how to fix this ?

Don Czapski: your problem is most likely either clogged or damaged drain hoses that run under the dash and out the firewall. They are two small hoses about 6 inches long and 3/8 inches in diameter, clamped on either end. They crack with age and drip onto the occupants. Any hardware store can sell replacement hose for about a buck.

Tom Sargeant: Some of this is duplicative to the other answers but there are alternative solutions presented below, especially if your metal tubes are rusted. I have/had the same issue. As others have posted, a metal drain tube runs from the air scoop intake area into the dash. A rubber hose is attached there to connect that metal tube to the exit tube into the engine area. Same on both sides of the car.

I fixed the driver's side and still had a leak. I learned that if my air scoop was open (top left lever to the far left blue arrow) and my heater was closed (bottom left lever to the far right), water can come in to the car under the dash. That is because the flap that closes the heater box opens the air flow into the car-similarly, when the heater box flap is open, the air ducts into the car are closed.

Worse scenario for rain is a closed heater flap and open air scoop, as rain can come in through the air vent. I think I have all this right! If you remove the cowl chrome and cowl, all of the mechanical flaps are exposed and you can see how this all works. All of this assumes the flaps open and close based on the length of the cables. I discovered mine did not and had to add to the length of the cable.

Another possible entry point is on the sides of each of the walls of the intake scoop. They are not as high as I think they could be and some water could rush through there and get into the car. I could not get to the hose under the dash on the passenger side due to the A/C. What I did was take a 1/2 inch clear hose (Home Depot), cut it to create a sharp point, sprayed it with silicone to make it easier to insert and fished it through from the air intake drain through the old hose and out the passenger side exit in the engine area. This is essentially a sleeve. I then caulked around the drain in the air intake area.

Thanks to all who offered advice on how to find and stop my leak. The drain tubes were clogged and there was a small hole in the rubber connecting hose under the dash. Both fixed, no more leaks. But.....I violated the most inviolate principle to which we must pay heed when working on these cars: never look into a dark place that you've never seen. Once I removed the air scoop and filter, I found numerous problems in the heater enclosure. Oh well, it's summer and I've got a lot of time to fix it.

Achim: the lower heater flaps (which go for left and right side) are prone to problems, especially the left one. Take them carefully out, clean everything thoroughly, reglue them with epoxy (if necessary) and especially put a few drops of oil to the linkage rod of the heater valve and the hinges of these flaps. That will help your heater levers in the dash a lot.

I recently had my car out, the soft top was up and unfortunately we were hit with torrential thunderstorms. My car was parked outside for about an hour. The rain slowed enough that I decided to drive it home. When I got in, I discovered water on the floor of the driver's side. Additionally, as I drove away and turned a corner, water came from underneath the dash. Is this common?

You need to remove the chrome grill from your fresh air intake and then remove the filter under that. You're probably going to find that the scuttle holes which will be visible on either side are blocked with debris. Clean thiese out with a piece of wire. The rubber ball valves which are visible on the lower half of the firewall right in back of the engine--if they ares till intact--are also probably blocked--one other thing to ck is to make sure the short rubber tubes that lead from the scuttle area through to the firewall are not broken or likewise deteriorated. Cleaning up these areas should solve you problem--unless you have a bigger leak problem caused by a rust-out of the scuttle box.

You most likely have a very common problem, but one that is usually easy to fix. First, look to see if you had the fresh air vent open (the cowl in front of the windsheild). If so, the drain hoses are probably blocked or cracked, or both. There are two rubber drain hoses about 6 inches long that are attached by clamps. They run from under the dash out to the firewall. Go to a hardware store and get a replacement and you should be fine. Let me know if it works.

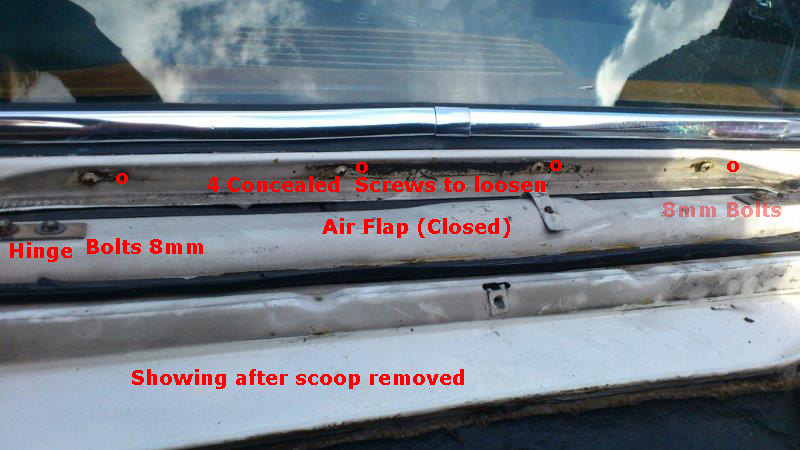

I want to remove my air Intake Cowl so that I can sleeve the tubing with plastic tube and check my filter and clean everything out. Inside in the back of the cowl are 3 or 4 screws. My Question is about those Screws ... Do I have to remove the screws completely or just loosen them? They are in a very awkward place. Is the cowl slotted OR drilled?

You need only to loosen those screws as the cowl will lift straight up, after the chrome grille and the teo screws in front and the two near the wiper arm connectors(these might be buried under paint and debris).

Who here knows how to remove the butterfly flapper valve from the chrome fresh air vents on the left and right side of the dash? I had no difficulty in removing the vents, but have no been able to figure out how to remove the post that goes through the center of the butterfly valve so it can be removed. Has anyone had any experience in removing this?

Bob Smith: I had my air scoop off today with the intention of cleaning out the well and filter etc. How do you remove the hinged air flap inside the scoop? I thought I would remove the bolts to the hinge but the nuts are on the inside of the flap and are not accessible. Just right for never getting back on! OR are the nuts welded to the inside of the flap? I looked at the hinges and they seem to be nylon once only fittings.

I just dismantled my heater and - unfortunately - you'll have to remove the defroster ducts to get to the bolts that hold the flaps. I can't imagine why the car was built this way, but it was (perhaps Mercedes has a special department called Difficulty Engineering). Just to warn you, removing the duct from the driver's side, will require removal of the windshield wiper linkage - not fun. There is also a center mounting bolt for the blower cage the nut for which can only be accessed by removing the plate on the right side of the transmission hump. If anyone out there knows of an easier way, please speak up; I've still got to put everything back together.

Bernt Damm says: which flap is Bob talking about? The fresh air flap is removed by undoing the left side 2 bolts on top of it and then sliding it out sideways. As for the inside 2 black flaps that control the heater, you need to unscrew them from inside the car. I did this without undoing anything in the car but you need to be flexible and you need a 10 mm mini socket set with 1/4" drive. It is the bolt on the driver side that is really difficult to get to. and yes, the nuts are welded to the the flap fittings. Then again Bob has a right hand drive so it is all completely different again. It may be a lot easier ot more difficult to get to the 2 bolts. I had to take them out because the flaps were broken off but I would certainly not ever do this just for cleaning...

Bob replies: Bernt, The flap (vent cover) I am talking about is the main one that shuts and keeps the air out of the car. There are four bolts (2 on each end) that need to be removed BUT the nuts are on the inside of the flap and look prone to dropping into the space below. The flap on my car does not open to a vertical position only about 45 degrees, hence my difficulty in removing the bolts and nuts. I was wondering if they are welded onto the underside of that flap? I don't want to drop them into any important mechanisms etc. Also if they are not welded, I think I might reverse the bolts and glue the bolt heads to the underside of the flap and exposing the nuts. This should make it easier in the future.

John, I hope you resolve your heater problems. Eventually I have to free up my heater valve (including a new "O" ring) and replace the red lever. At this point I don't have a replacement lever. My car is an early 250sl and has the hard plastic transparent coloured levers.

Bernt again: the airflap tilts all the way if you lift up the spring ot top of its middle to free the cable mechanism. The bolts have no loose nuts underneath.

The nuts on the main flap are welded to the underside of the flap. Unless the welds have broken (very unlikely) you should be able to remove the bolts and nothing will drop into the cavity. Take note, that each of the bolts has a washer under it which may stick to the flap. Don't let the washers drop into the cavity. The cable that moves the flap can be adjusted, but a 45-degree opening is about right.

Bob - don't worry about removing the bolts. I did this twice a few months ago (removing this flap) and there's no danger. Actually the space ("box") below the flap I recall is pretty easy to retrieve things from, even if you would drop a bolt, so long as it is not in one of the two small drain pipes (but again the risk of something like that is remote).

I am not sure now but I believe the nuts are actually welded in the car body, so you can't (but also don't need to) change the set-up. The 45-degree angle is ok. While you have the thing open, check whether the rubber gasket is around the flap, and is in good, flexible and fresh shape. Mine had become hard and brittle, so I replaced it. Better seal when you don't want outside air (or water!) in. The rubber seal is a bit odd-shaped, and you need to make sure you have it in right side up (I didn't at first, which is why I had to do the remove-the-flap procedure twice!)

Hi Bernt, John, Cees, that is exactly what I wanted to see. Knowing what to expect,I can confidently do the job. I intend to sleeve the drain tubes with plastic tubing and seal them with silicone around the top. This should eliminate any future rust problems. I also intend to replace the filter if it is still there. At this point I have not enquired about local availability of the original filter. Have any of you made your own filter? Are these filters standard mesh? There must be standard mesh material that can be cut to shape.

Cees: the filter is a mesh type that I just rinsed out, it looked good enough not to have to replace. If it is not there you should be able to make one quite easily from e.g. kitchen hood filter material or something like that, it is a sort of standard and not too fine mesh. You should be able to get one there though, I would think, Ohterwise buy one abroad and have mailed by regular mail, it is very light and should not trigger import duties, VAT or other complications like that. If you can avoid sleeving the drain tubes I would. It limits capacity and also moisture could settle between the metal tubes and the new plastic sleeves? I replaced the rubber hoses underneath the dash and checked that the metal tubes are still ok. If your metal tubes are not ok, then you're probably better off sleeving them.

Bob, I got a quote several years ago of $80.00 US for the filter. Mine was a fiberglass mesh with a metal spring to hold it in place. I simply bought a fiberglass air conditioner filter at a harware store and cut it to shape.

Rodd (on removing and refitting the rubber seal around the fresh air flap): been there, done that, got mad, then got it right. 3M Rubber Adhesive and 3M Rubber Adhesive Remover are critical. (On the filter): Bob, These filters are VERY expensive, probably $80 here in the USA. I made my own out of a cheap ($4) furnace filter. I think it's only purpose it to keep bugs and large debris (leaves) out.

John Hassle: over the past few days, I've been working on my heater core and control cables. During my last road trip, I noticed some water leaking into the car and dripping on my feet. It only happened during heay rain with the air scoop open. I checked the drain tubes and made sure that they were clear and that the rubber hoses were good, but the leaks continued. Today, I found the cause. Three of the heater control cables go through the air scoop compartment and each has a rubber grommet in the firewall. In my case, all three of the grommets were broken and allowed water into the car. I changed the grommets and voila, no more leaks. Whenever you're working on the heater controls or looking for leaks, check the grommets.

Bob: hey group, I did the air vent clean out today. Under my dash I can see rust marks on the firewall paint so I used clear plastic tubing to sleeve the drain pipes and rubber tubing. I used silicone to seal around the top of the tubing. The air filter was in place but it was lying in the bottom of the air well. It was in reasonable condition so I cleaned it and let it dry in the sun then I clipped the spring on the back of the filter into the retaining clips on the body. Funnily, the filter does not extend the full width of the air well.

The vent seal was in good condition and I could not see any rust in the air well itself. I also took the opportunity to replace the plastic tubing to the windscreen washer pump and reservoir tank. On Sunday I did a short trip around town including a stop at the hardware store for 10 minutes. QUESTION - do the black plastic inserts of the chrome pieces that are on the bottom of the door and the front fenders fall out when they become hard? OR: Does it take a screw driver in the hand of some mean spirited sod to prise them out even if they are old and hard?

The following procedure is recommended for W113 Pagoda owners experiencing water leaks in the interior of the car under the dash. Water entering the car during or after a rain storm are usually related to problems with the "fresh air" vent located forward of the windshield. If this problem is left unattended it will not only ruin the carpet, but cause rust deterioration of the floor itself.

The fresh air vent should be examined for debris, clogged drains, cracks in the drain hoses, and deterioration of the original water sealant applied by the factory. This is not a difficult job for the DIYer. A complete check is as follows:

• Raise the hood and remove the three screws fastening the chrome front piece of the vent.
• Remove the two lower screws of the cowl and the two screws located near the windshield wipers.
• Loosen the four screws located inside the cowl along the rear. The cowl will now lift off. Detach the windshield washer hose from the spray nozzle.
• Open the vent half way via the interior dash control.
• Remove the four 10mm bolts (don't worry, the nuts are fastened to the underside).
• Lift up the swivel cover and push out the cable rod.
• Remove the cover.

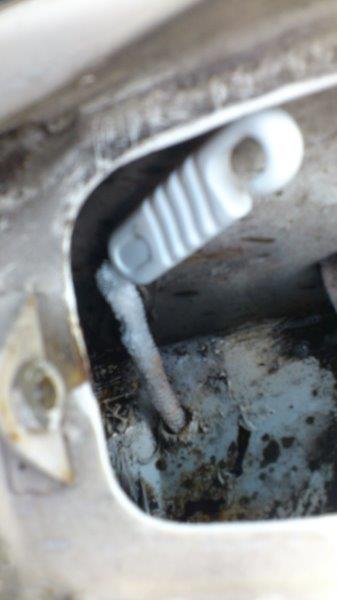

• Remove the filter by, first, gently lifting one of the top corners to locate the wide "spring" on the underside of the filter. The spring is held in place by three small brackets forward and back of the filter.
• To remove the filter, gently compress the spring along the 3 upper brackets to release it. Use care not to damage the filter or spill excess debris into the vent area. (The filter can be vacuumed or gently washed prior to reinstallation).
• Use a shop-vac to remove any debris from inside the vent area. Use a screw driver or other tool to prise up any factory sealant that has loosened. (The factory sealant resembles caulking compound in appearance).

Pay particular attention to the sides near the drain holes, checking for any cracks in the sealant along the sidewall seams. Scrape loose debris and remove. Ensure that both drain holes are clear of debris. (If water does not drain properly through the drain holes, it will spill over the walls of the vent compartment and into the interior vents or blower.)

Clean the vent compartment thoroughly with shop-vac and rags. If rust is present, use Permatex Rust Eliminator or other such product to neutralize any rust. Apply a high quality automotive silicone (3M or other brand) to seal the entire area, paying attention to the metal seams on either side of the inner vent area.

Many leak problems are associated with loose sealant in the seams of the side walls of the inner vent. When the sealant looses its effectiveness, water can pass freely to the interior side vents, even when the drain holes are clear Reinstall the filter, swivel cover, cowl and chrome in the reverse procedure of the above. In the interior of the car, remove the lower under dash panel above your feet (if present in your car).

Check the drain hoses. These are 6 inch hoses running from the vent box above and outwards to a metal tube in the firewall. Remove the lower clamps and check for debris. If hoses are dry or cracked, replace with similar hose from your local hardware store. (Clear hose works well so that you can examine for future debris without removal). Finally, check the "bubble" drain hose located at the firewall in the engine compartment to be free of debris. No more wet carpet. No more wet feet.
